Wiseco Piston 0.50mm Over 53mm 651M05300 Kawasaki KX100 1995-2013

Part: Wiseco Piston Kit
Part Number: 651M05300

Product Information:
-Lightweight forging for instant throttle responce and maximum torque.
-Computer engineered piston skirt profiles minimal cylinder wall friction.
-Anti-detonation grooves and new ring land diameter eliminates ring blow-by while maximizing engine performance.

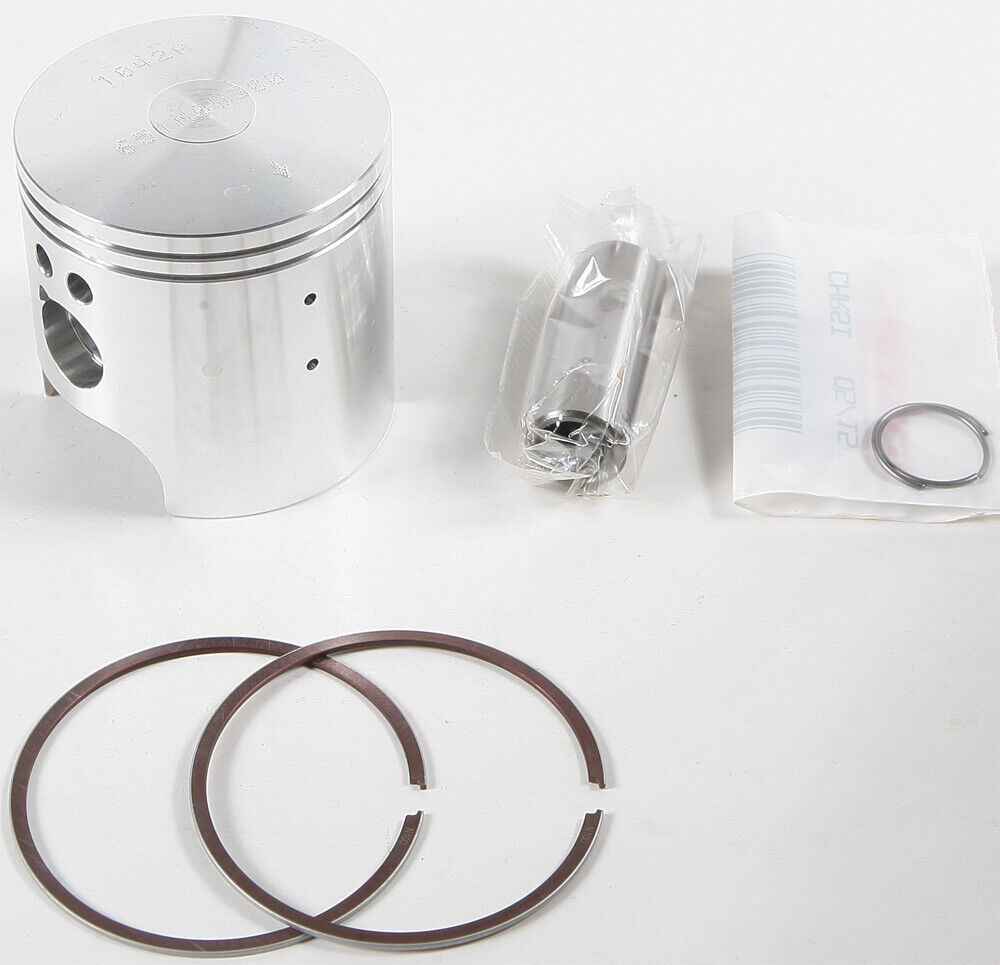

-Piston kit includes 1 - Piston, 1 - Ring Set,  1 - Wristpin, and 1 - Circlip Set unless otherwise noted in the "Notes:" above.
-Oversize kits require cylinder boring or sleeving.
-Top end bearing not included in kit.

Kawasaki KX 100 1995-2013
Displacement: 101 cc
Bore - Standard: 52.5 mm
Bore - Actual: 53.00 mm
Bore - Oversize: 0.50
Stroke: 45.8 mm
Electrofusion BoreNotes: Cylinder sleeving required
Notes: Cylinder replating required

Kawasaki KX100 Monster Energy 2009
Displacement: 101 cc
Bore - Standard: 52.5 mm
Bore - Actual: 53.00 mm
Bore - Oversize: 0.50
Stroke: 45.8 mm

Suzuki RM 100 2003-2005
Displacement: 101 cc
Bore - Standard: 52.5 mm
Bore - Actual: 53.00 mm
Bore - Oversize: 0.50
Stroke: 45.8 mm
Electrofusion BoreNotes: Cylinder sleeving required
Notes: Cylinder replating required
